Feature
1, It's major to replace the HPS with screwed base directly.

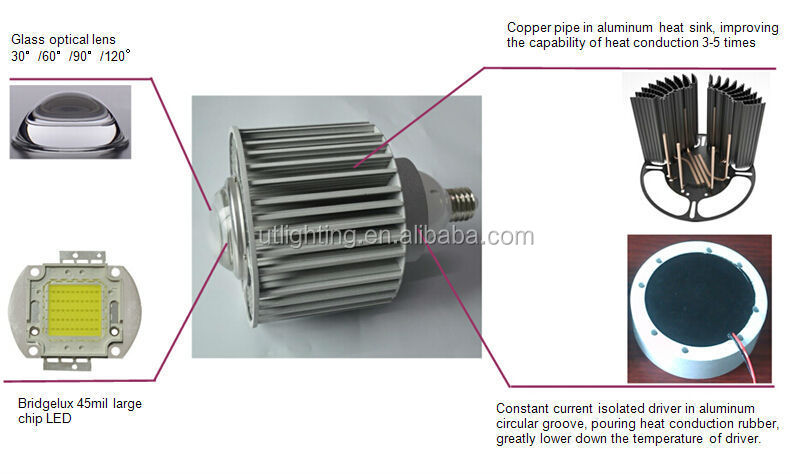

2, Using copper heatpipe design. By riveting the heatpipe to the aluminum fins, the heatpipe can conduct heat
rapidly from chips bottom to the fins, greatly lower down the temperature of light source,
extending its lifespan.
3, All kinds of lens to choose from, different applications with different lens.
4, Environment friendly. No RF interference , no IR/UV radiation in the light beam, no mercury pollution.
5, Save energy by over 70% comparing with traditional HPS.
6, Instant start, no warm-up time, no flickering, no humming.
7, Shockproof and vibration-proof thanks to LED technology.
8, It is capable of withstanding lower temperatures without damage.
Parameter
|
Input voltage |
85-265V AC |
|
Light source |
Bridgelux COB LED |
|
CRI |
>70 Ra |
|
Luminous flux |
>100LM / W |
|
Color temperature |
2700-6500K |
|
PF |
>0.9 |
|
Housing material |
6063 Aluminium / Copper |
|
Lens |
Glass Lens 30°/60°/90° |
|
Waterproof |
IP44 |
|
Working Life |
20,000hrs |
|
Lamp base |
E40/E39 |

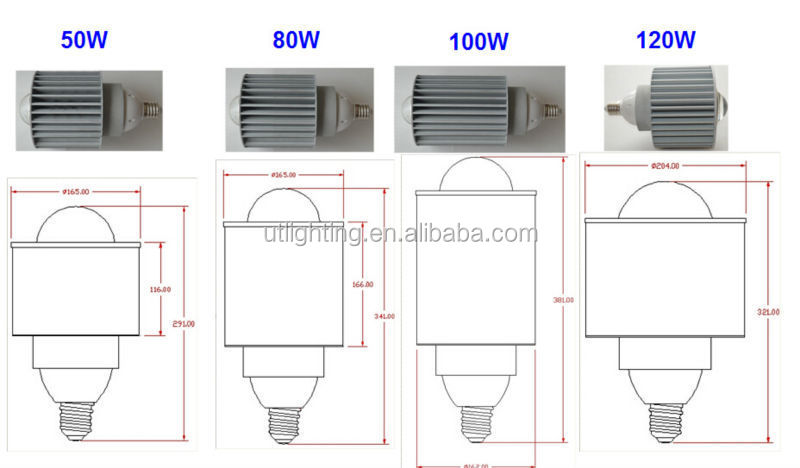

Specification
|
Power Consumption |
Working Current |
Net Weight |
Dimension |
Package Size |
|
50W |
1.43A |
2.3 |
φ165*291mm |
255*255*410mm |
|
80W |
2.28A |
2.5 |
φ165*341mm |
255*255*460mm |
|
100W |
2.85A |
2.7 |
φ165*381mm |
255*255*500mm |
|
120W |
3.4A |
2.9 |
φ204*321mm |
295*295*440mm |

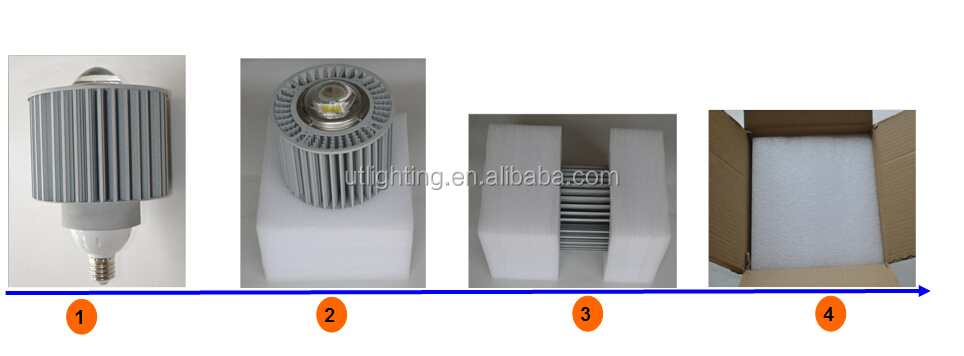

Package
Application

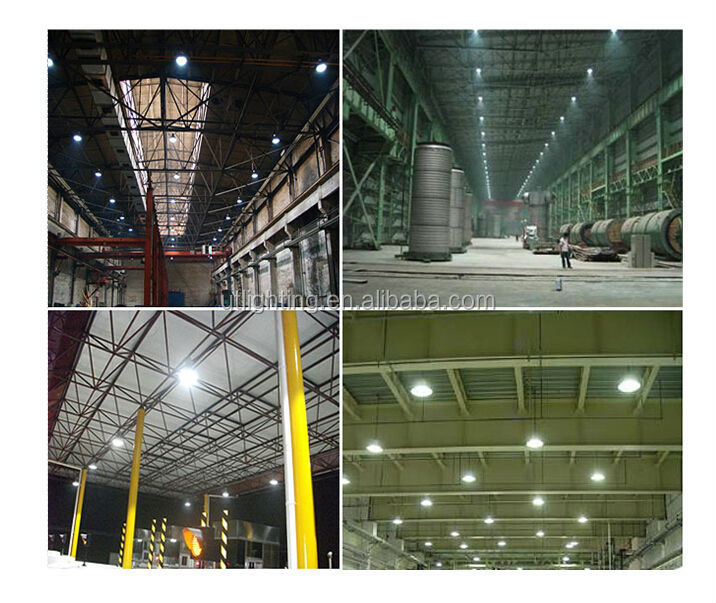

Workshop, super market, warehouse, shopping mall, stadium etc..
