| LED high bay 150W | ||||
|
Parameter |
||||
| Power consumption | 150W | Luminous efficiency | >100Lm/w | |
| Input voltage | 85V-277VAC | IP grade | IP44 | |
| Light source | Osram SMD3030 192pcs | Material | Aluminum | |
| Driver | meanwell | Reflectors | 45°/60°/90°/110° | |

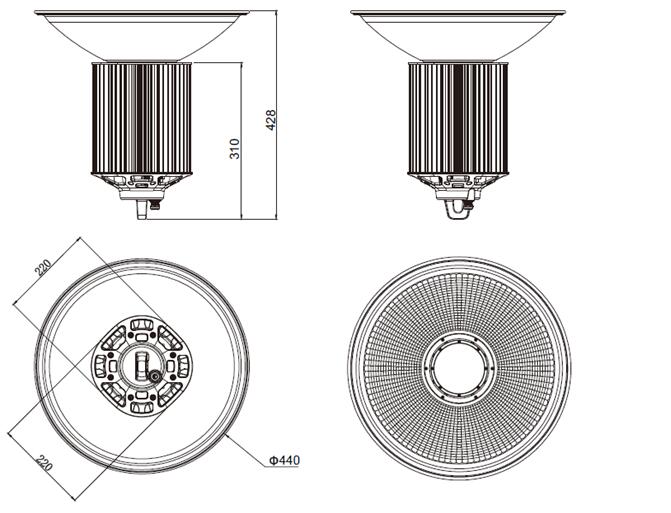

| CCT | 2700K/3000K/4000K/6000K | Dimension | Φ 220*310mm | |
| Luminous flux | >15000LM 70% maintenance after 50000H |
Life spam | >50000H | |
| CRI | >80 | Warranty | 5years | |
|
|
||||
Packing
Inner Box：255×255×435mm (1pcs/box) Net Weight： 4.2KG Gross Weight: 4.8KG
Carton: 530×530×415mm (4pcs/carton) Net Weight：19.2KG Gross Weight: 20.2KG
4boxes packed in a Carton
Reflectors:530×530×250mm (8pcs/box)
|
Feature |
● Energy Efficient.In the case of the same luminous efficiency, energy-saving of 67% than traditional light
● Long Life. The use of light-emitting semiconductor chip,life time up to 50,000 hours
● Healthy. Light does not contain ultraviolet and infrared light, no light radiation
● Environmental protection. No mercury and xenon and other harmful elements, recyclable,no electromagnetic interference
● High-performance external constant current drive power, no flicker;good for eyes.
● No glare.Anti-glare and deeply embedded structure design
● Patent LED lamp light source, high luminous efficiency, high color rendering index
● Advanced thermal design, cold forging die casting integrally formed, the contact thermal resistance, high thermal efficiency
|

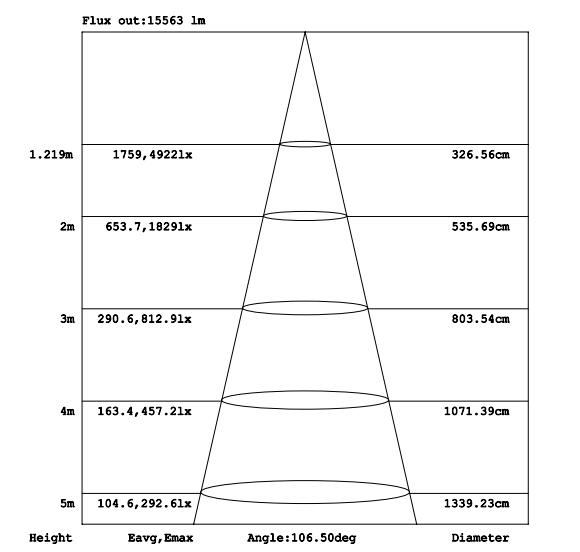

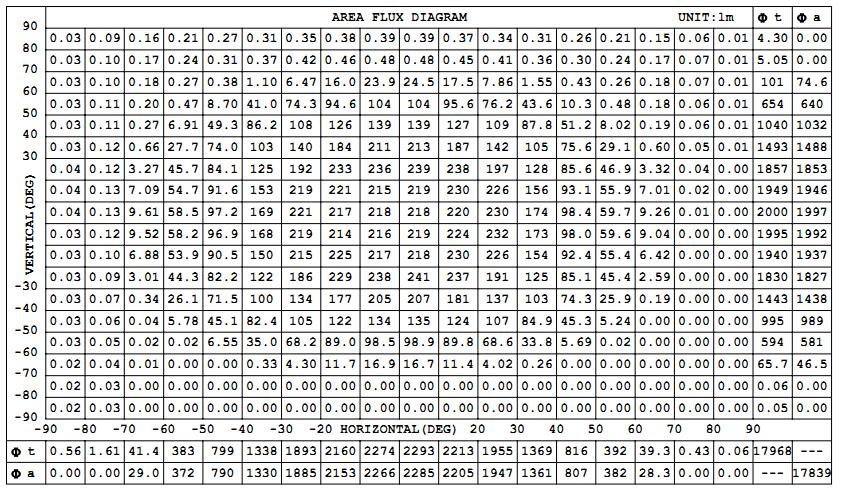

IES report |
|
Installation |
|

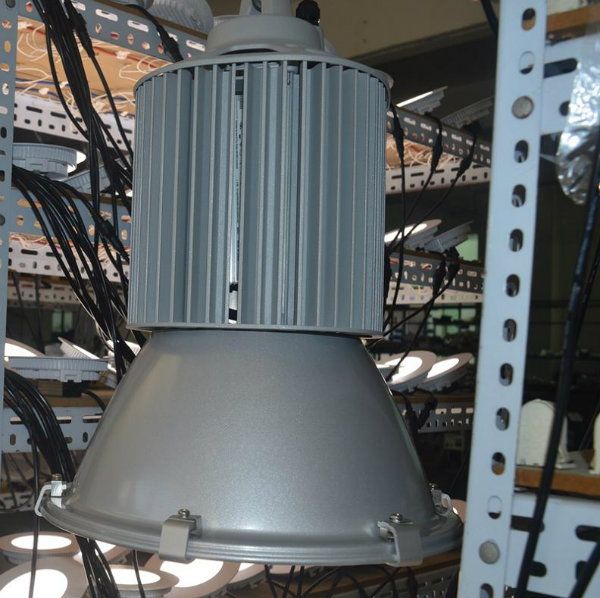

Product scene |
