| LED high bay 200W | ||||
|
Parameter |
||||
| Power consumption | 200W | Luminous efficiency | >100Lm/w | |
| Input voltage | 85V-277VAC | IP grade | IP44 | |
| Light source | Osram SMD3030 228pcs | Material | Aluminum | |
| Driver | meanwell | Reflectors | 45°/60°/90°/110° | |

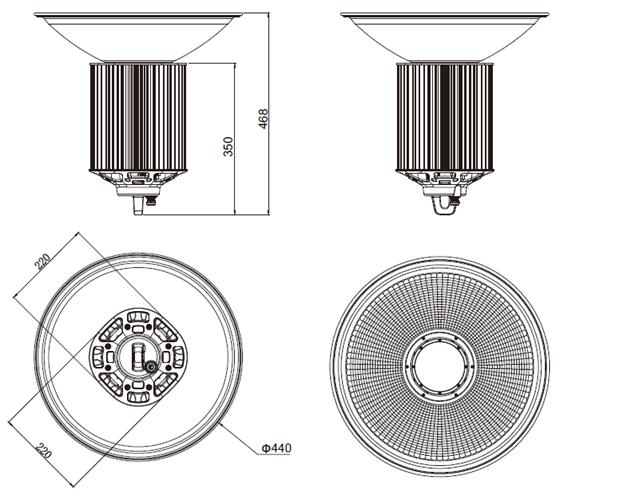

| CCT | 2700K/3000K/4000K/6000K | Dimension | Φ 220*350mm | |
| Luminous flux | >20000LM 70% maintenance after 50000H |
Life spam | >50000H | |
| CRI | >80 | Warranty | 5years | |
|
|
||||
Packing
Inner Box：300×300×460mm (1pcs/box) Net Weight： 4.7KG Gross Weight: 5.61KG
Carton: 620×620×480mm (4pcs/carton) Net Weight：22.44KG Gross Weight: 23.64KG
4boxes packed in a Carton
Reflectors:530×530×250mm (8pcs/box)
|
Feature |
● Energy Efficient.In the case of the same luminous efficiency, energy-saving of 67% than traditional light
● Long Life. The use of light-emitting semiconductor chip,life time up to 50,000 hours
● Healthy. Light does not contain ultraviolet and infrared light, no light radiation
● Environmental protection. No mercury and xenon and other harmful elements, recyclable,no electromagnetic interference
● High-performance external constant current drive power, no flicker;good for eyes.
● No glare.Anti-glare and deeply embedded structure design
● Patent LED lamp light source, high luminous efficiency, high color rendering index
● Advanced thermal design, cold forging die casting integrally formed, the contact thermal resistance, high thermal efficiency
|

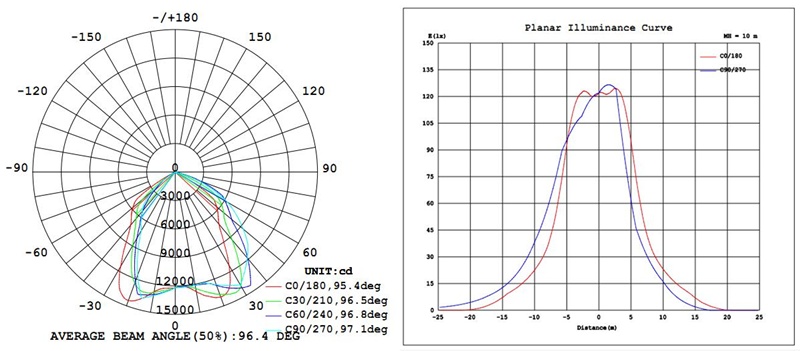

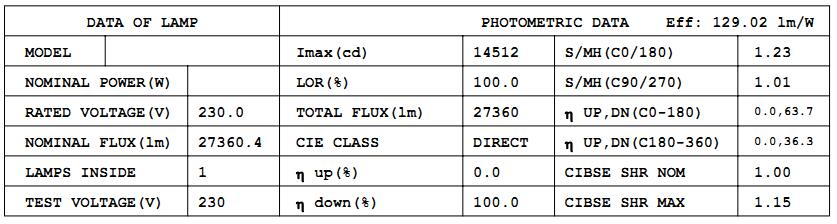

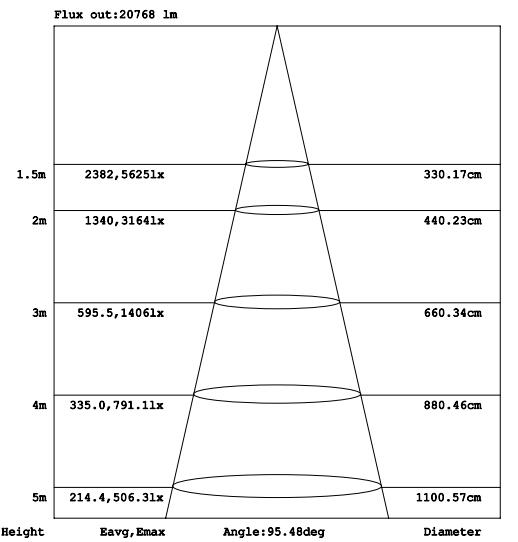

IES report |
|

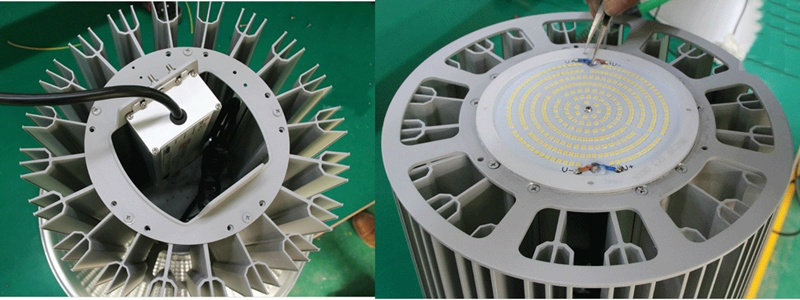

Installation |
|

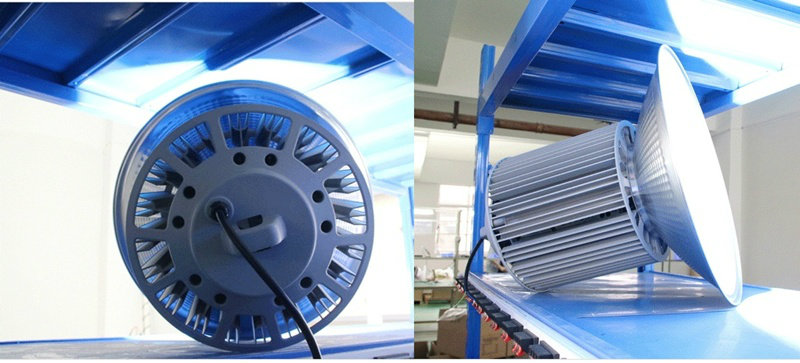

Product scene |
