| IP65 LED flood light-30W | ||||
|
Parameter |
||||
|
|
||||
| Power consumption | 30W | IP grade | IP65 | |
| Input voltage | 100V-240VAC/277VAC | Material | Aluminum + Toughened glass | |
| Light source | Epistar COB 30W | Beam angle | 120° | |
| Luminous efficiency | ＞90LM/W | Dimension |
255x243x125mm |
|
| Luminous flux | ＞2700LM | Lamp body color | black, grey, brown, silver | |
| CRI | ＞80 | Warranty | 3years | |
|
|
||||
| Hight | Average illuminance | Spot diameter | ||
| 1M | ＞390.06LUX | 2.745M | ||
| 2M | ＞97.52LUX | 5.49M | ||
| 3M | ＞43.34LUX | 8.235M | ||
|
|
|
|||
|
PIR parameter |
| Detection Range | 120° (max) |
| Detection Distance | 2m-12m |
| Input Voltage | 100V-277VAC |
| Rated Load | 100W (max) |
| Working Humidity | <93%RH |
| Holding Time Delay | 20 to 600 sec ±10% (can be adjusted) |
| Ambient-light | <3~1000lux (can be adjusted) |
| Installation height | 2~4.5m |
| Detection Motion Speed | 0.5~1.5 m/s |
|

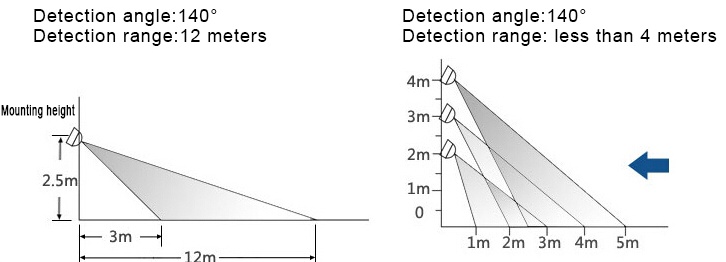

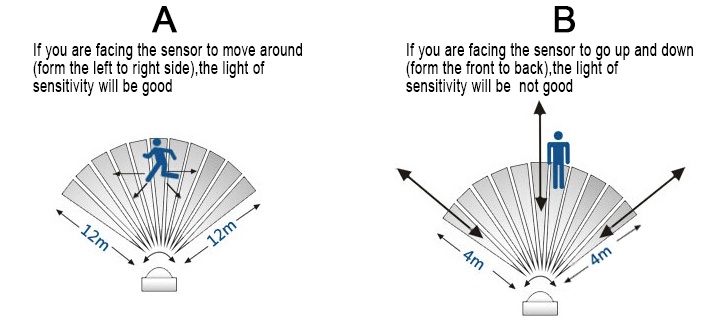

PIR detecting area |
|
Feature |
● widely input voltage range, constant current and constant voltage driver
● use highly sensitive human infrared sensor,large detection area long
● distance PIR motion detector/motion sensor
● use Bridgelux or Epistar LED chips
● use toughened glass and the light transmittance is above 93%
● high purity aluminum reflector, high thermal conductivity body and radiator
● product has high efficiency, safety, energy saving, environmental protection
● widely applied to garden, garage, veranda, stair automatic energy-saving lighting
